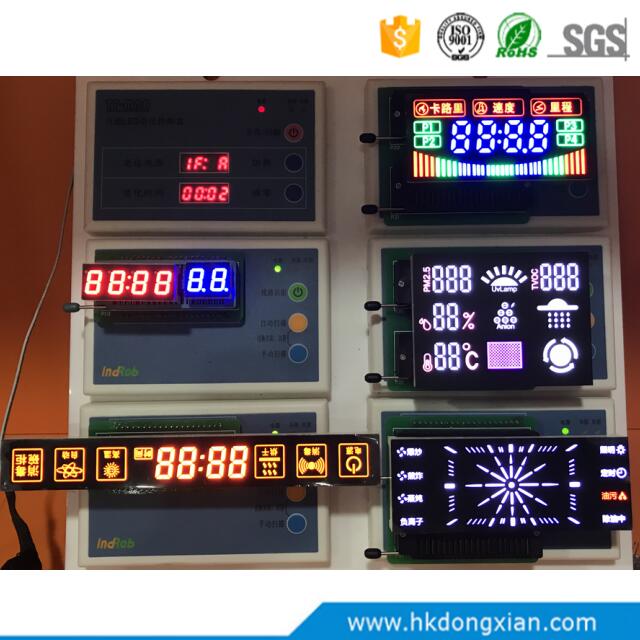

Custom LED Digital Displays

(Ta=25℃) Absolute Maximum Ratings for reference or custom:

Power Disspation

 50mW

Peak Forward Current

 100mA

Reverse Voltage

 5V

Operating Temperature

 -20℃ ~ +85℃

Storage Temperature

 -30℃ ~ +85℃

Storage Humidity

 45℃ ~ +85℃

(Ta=25℃) Electrical-Optical Characteristics for reference or custom:

Parameter

Test Condition

Symbol

Min

Type

Max

Unit

Luminous Intensity

IF=20mA

IV

63.00

74.66

80.00

mcd

DC Forward Voltage

IF=20mA

VF

1.96

1.99

2.10

V

DC Reverse Current

VR=5V

IR

-

-

100

uA

Wavelength Characteristic

IF=20mA

λp

    630.00

631.06

633.00

nm

Suggestion Forward Current

-

IF(Sug)

        5

      10

      20

mA

Note:

Soldering Bath: not more than 5 seconds at 260℃.

The bottom ends of plastic Reflector should be at least 2mm above the solder surface.

Soldering Iron: not more than 3 seconds at 300℃ under 30W.

Storage & Soldering condition:

1, Store with care, Storing the units in bad condition will cause the reflector sheet and decrease it’s adhesive power, Storage the products under the condition: temperature (25℃±10℃) and humidity(25℃CRH±10℃ CRH) our recommendation.

2,The Soldering Temperature is 260℃±5℃ and Soldering Time should be less than 3 seconds, and soldering iron power should be less than 30W.

3,The soldering point should be farther than 1.6mm from body.
